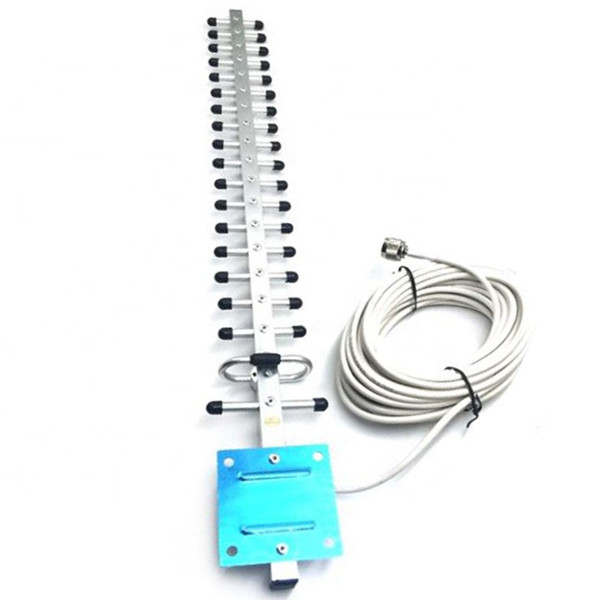

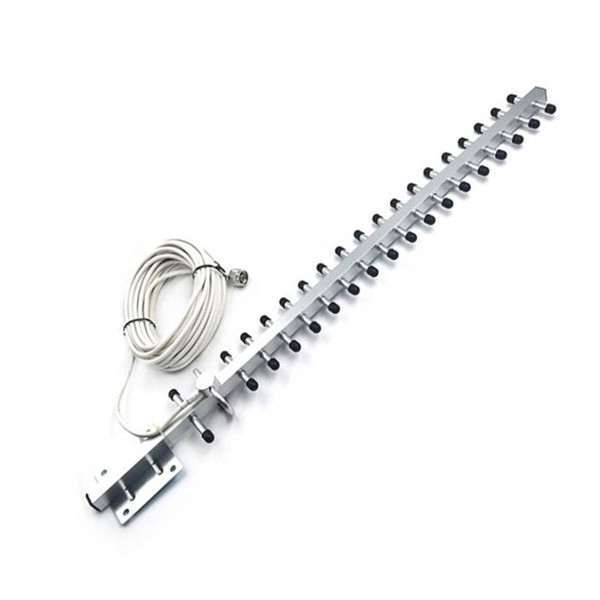

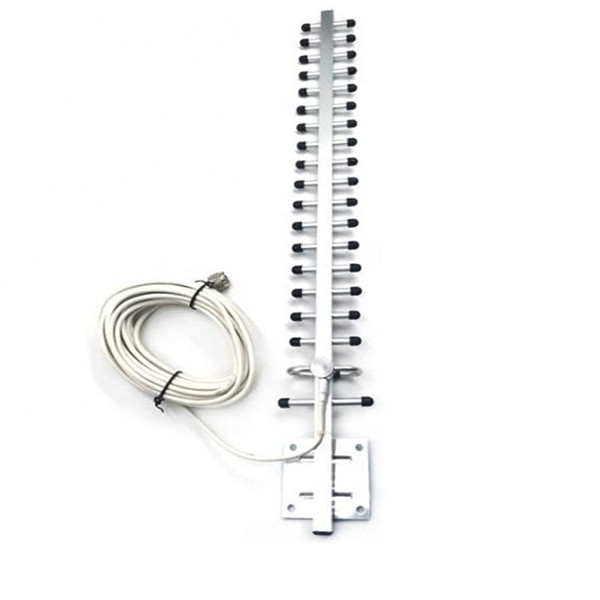

12dBi outdoor yagi antenna HY-YA-12D

698-960MHz Directional Yagi Antenna

HY-YA-12D

Feature：

●High gain

●Aluminum alloy framework

●Full day working

●Optimized dimension

●Mounting way can

be Vertical or Horizontal

Application：

● CDMA、GSM, CDMA、GSM system

●Point-to-point，point-to-multipoint system

●Wireless bridging，client terminal antennas

HY-YA-12D Electrical Specifications
Frequency range（MHz）	698-960
Gain（dBi）	12
Element	10
Half-power beam width（°）	H：30 V：30
Front-to-back ratio（dB）	≥16
VSWR	≤2.0
Input Impedance（Ω）	50
Polarization	Horizontal or Vertical
Maximum input power（W）	10
Lightning protection	DC Ground
Input connector type	N female or Requested
Mechanical Specifications
Dimensions(mm)	41517057
Cable length（m）	0.3
Antenna weight（kg）	0.3
Operating temperature（°c）	-40～60
Rated Wind Velocity（m/s）	60
Clamp	U-shape
Mounting hardware（mm）	Φ35～Φ50
