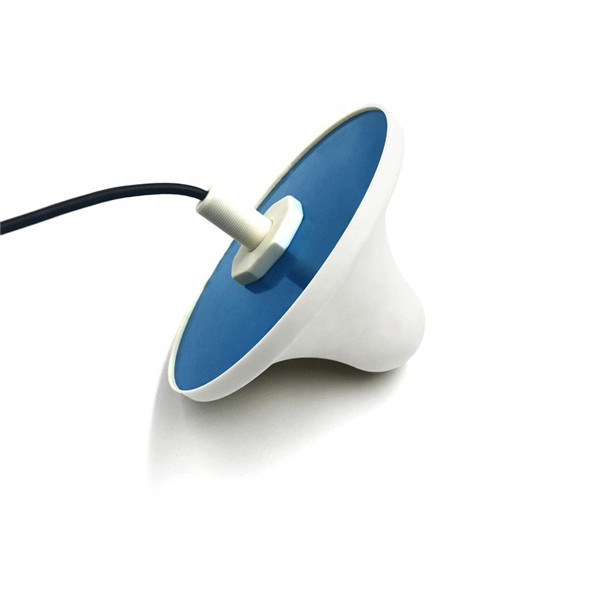

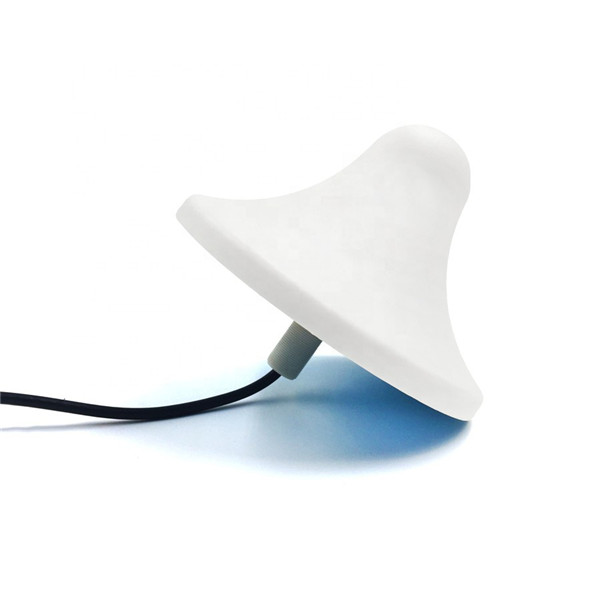

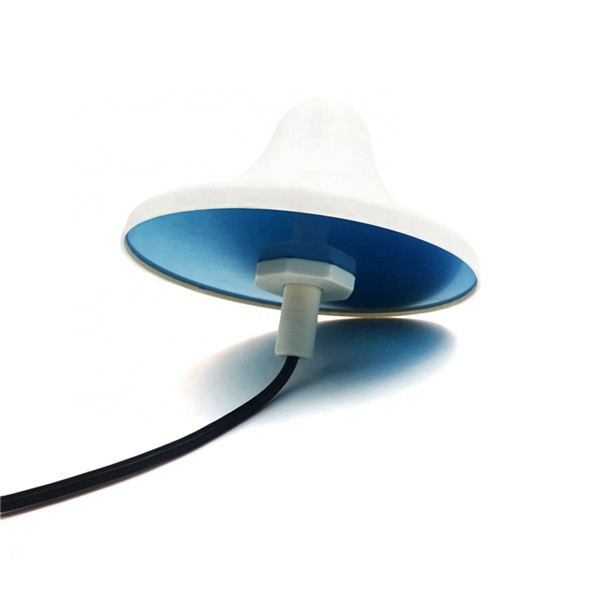

3dBi indoor omni ceiling antenna HY-ICA-3D

698-2700MHz Omnidirectional Ceiling Antenna

HY-ICA-3D

Feature：

● Exquisite appearance

● Suitable for ordinary ceiling mounting

● Optimized dimension

● Wide frequency band，

low standing wave，strong anti-interference ability

Application：

● Indoor omnidirectional coverage

● GSM/CDMA/PCS/3G/WLAN/LTE

GSM/CDMA/PCS/3G/WLAN/LTE system

HY-ICA-3D Electrical Specifications
Frequency range（MHz）	698～960/1710～2700
Bandwidth（MHz）	262/990
Gain（dBi）	3
Half-power beam width（°）	H：360 V：55
VSWR	≤2.0
Input Impedance（Ω）	50
Polarization	Vertical
Maximum input power（W）	50
Lightning protection	DC Ground
Input connector type	N Female
Mechanical Specifications
Dimensions (mm)	Φ165*95
Antenna weight（kg）	0.2
Operating temperature（°c）	-40～60
Radome material	ABS
Radome color	white
Mounting way	fastened with screw nuts
